UL2835 PVC Insulated Cable – 60°C / 30V Internal Wire for Electronic Equipment

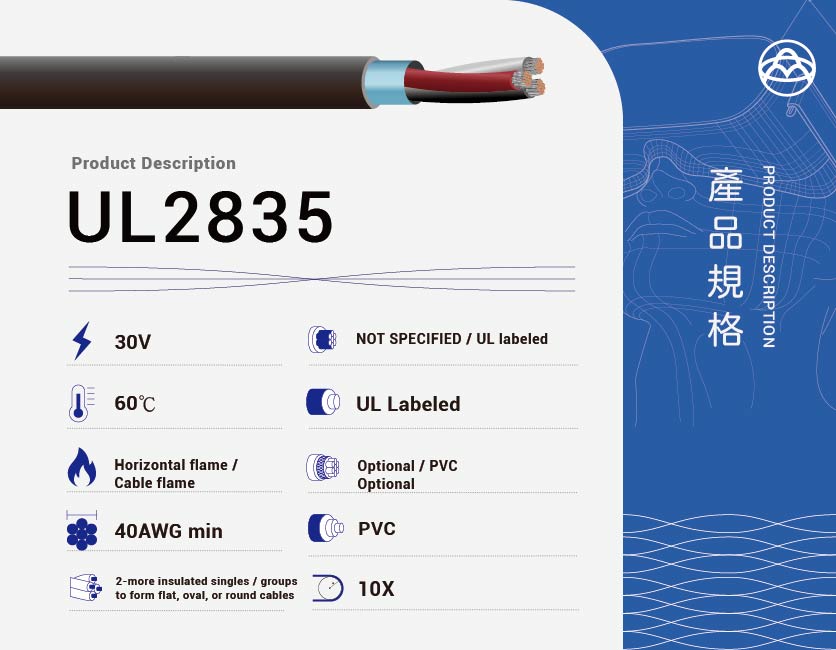

UL2835 is a UL-certified multi-conductor cable rated for 60°C and 30 Vac , designed for the internal wiring of electronic equipment. It consists of two or more solid or stranded copper conductors laid parallel, insulated with extruded PVC, and may include an optional outer jacket. This wire meets the Cable Flame Test requirements under UL 758 AWM Style 2835, offering flexibility and flame resistance for compact, low-voltage internal wiring needs.
Key Features
-
Conductor: Solid or stranded copper (two or more conductors)
-
Insulation: Extruded PVC
-
Jacket: Optional
-
Temperature Rating: 80°C
-
Voltage Rating: 30 V
-
Flame Resistance: Passes Cable Flame Test
-
Standards Compliance: UL 758 AWM Style 2835
-
Application: Internal wiring in electronic equipment
Common Applications
-
Internal signal or power wiring in consumer electronics
-
Compact devices requiring flame-retardant, parallel wiring
-
Wiring in control modules, sensors, or low-voltage systems
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 26 | 13.70 |
| 24 | 8.62 |
| 22 | 5.44 |
