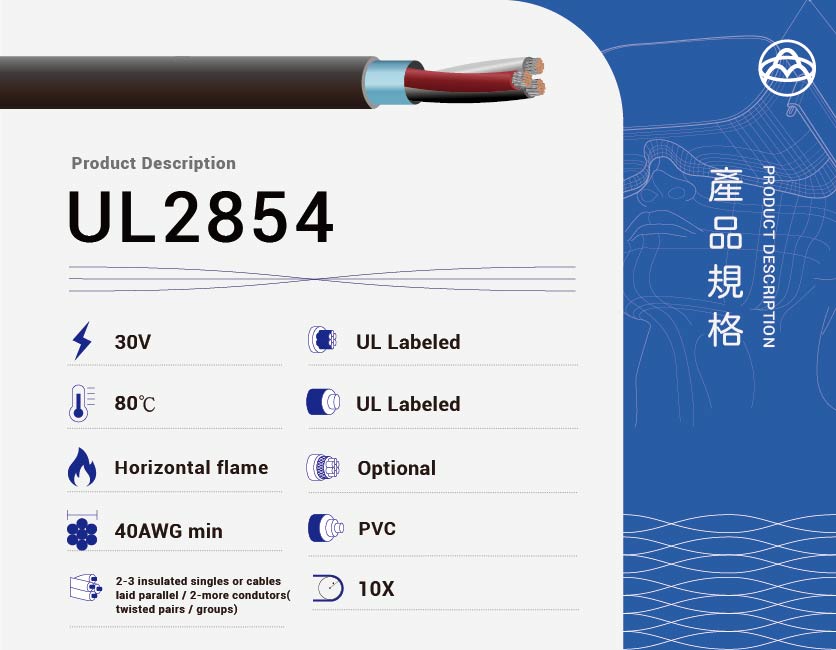

UL2854 PVC Insulated Cable – 80°C / 30V Parallel Wire for Internal Electronic Applications
UL2854 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30 Vac , it consists of two or more solid or stranded copper conductors laid parallel, insulated with extruded PVC, and may include an optional overall jacket. UL2854 complies with the Cable Flame Test under UL 758 AWM standards, offering a flexible and flame-resistant solution for low-voltage internal wiring.
Key Features
-
Conductor: Solid or stranded copper (two or more in parallel)
-
Insulation: Extruded PVC
-
Jacket: Optional
-
Temperature Rating: 80°C
-
Voltage Rating: 30 V
-
Flame Resistance: Passes Cable Flame Test
-
Standard: UL 758 AWM Style 2854
-
Application Scope: Internal wiring of electronic equipment only
Common Applications
-
Internal wiring in consumer electronics and instruments
-
Low-voltage power or signal cabling in control units
-
Compact installations needing flat/parallel multi-conductor layouts
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 26 | 13.70 |
| 24 | 8.62 |
| 22 | 5.44 |
