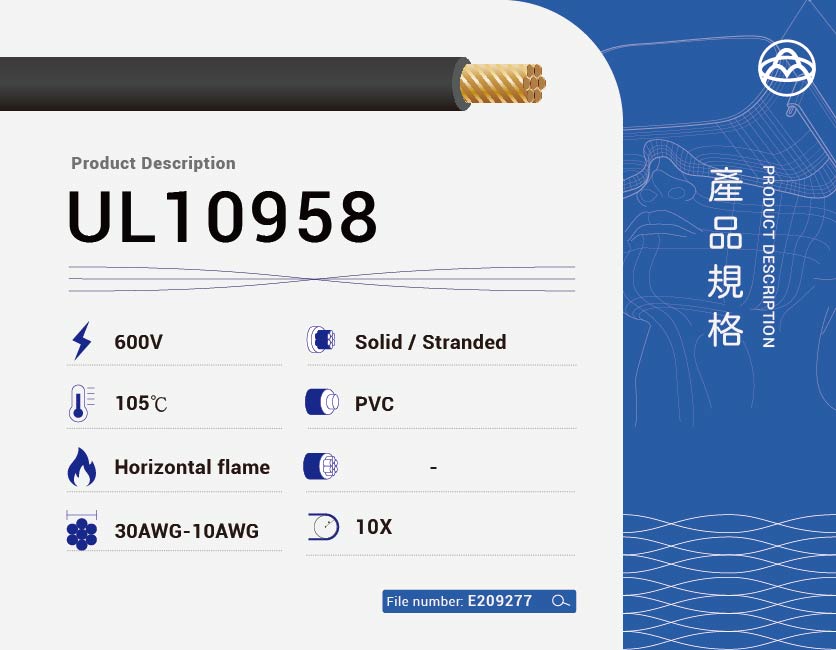

UL10958 Hook-Up Wire – 600V for Electronic Equipment
UL10958 is a UL-recognized single-conductor wire designed for the internal wiring of electronic and electrical devices. Rated for 600 volts and up to 105°C, this wire features PVC (Polyvinyl Chloride) insulation, offering dependable performance in demanding industrial and commercial environments.
Its construction supports a wide range of conductor sizes and is suitable for applications requiring flexibility, flame resistance, and long-term insulation stability.
Key Features
-
Voltage Rating: 600V AC/DC
-
Temperature Rating: 105°C
-
Conductor Sizes: 30 AWG to 10 AWG
-
Conductor Type: Bare or tinned copper, solid or stranded
-
Insulation: Extruded PVC
-
Min. Avg. Thickness: 9 mils
-
Min. Thickness at Any Point: 8 mils
-
-
Flame Test: UL Horizontal Flame Test
-
Certifications: UL 758 AWM Style 10958
-
Environmental Compliance: RoHS & REACH compliant
Common Applications
-
Internal wiring in appliances and control panels
-
Power and signal transmission in industrial machinery
-
General-purpose wiring in instrumentation systems
-
Automotive and HVAC module connections
