Description

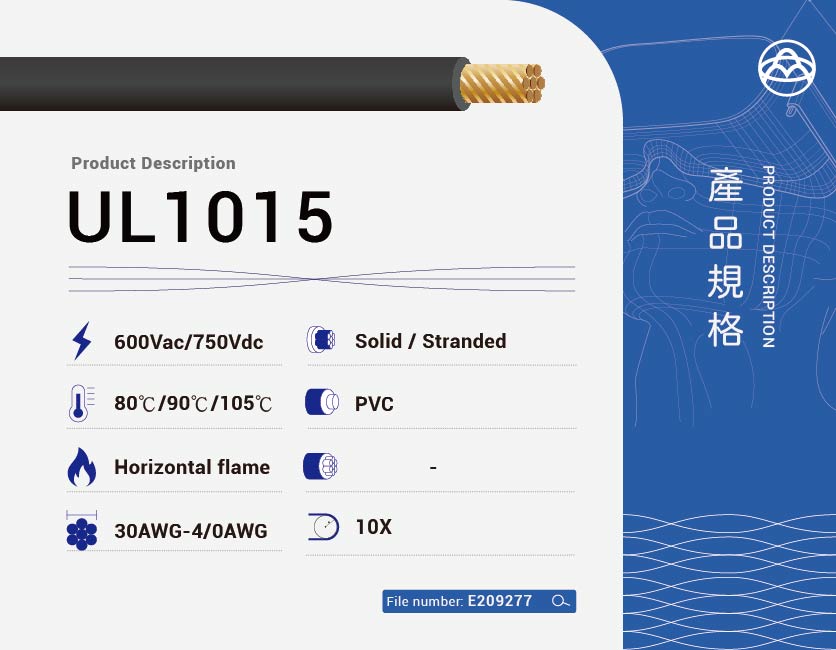

UL1015 Hook-Up Wire – 600V 105°C PVC-Insulated Wire for Internal Electronic Applications

UL1015 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 600V and operating temperatures up to 105°C, it features durable Polyvinyl Chloride (PVC) insulation, ensuring reliable performance across various applications.

This wire is ideal for scenarios demanding dependable high-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.


Key Features of UL1015 Hook-Up Wire

  • Voltage Rating: 600V AC / 750V DC

  • Temperature Rating: 105°C

  • Conductor Sizes: 30 AWG to 4/0 AWG, solid or stranded

  • Conductor Material: Bare or tinned copper

  • Insulation: Extruded PVC

    • Minimum Average Thickness:

      • 30–9 AWG: 30 mils

      • 8–7 AWG: 45 mils

      • 6–2 AWG: 60 mils

      • 1–4/0 AWG: 80 mils

  • Flame Resistance: Passes UL VW-1 & CSA FT1 vertical flame tests

  • Standards Compliance: UL 758 AWM Style 1015, CSA TEW

  • Environmental Compliance: RoHS & REACH Compliant


Application Areas for UL1015 Hook-Up Wire

  • Internal wiring of electronic and electrical equipment

  • Control panels and industrial machinery

  • Appliances requiring reliable internal connections

  • Point-to-point wiring in meters and instrumentation

UL1015 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.


🔗 Related Hook-Up Wire Products


🌐 External Reference Sources on UL1015 Wire


Need assistance selecting the right UL1015 wire for your application?

Our team is here to help you find the perfect solution.
👉 [Request a Quote] | [Contact Technical Support]

  • UL Wire
  • 輪播圖 1015-11
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • UL Wire
  • 輪播圖 1015-11
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • Rated voltage
    600Vac / 750Vdc
  • Rated temperature
    105℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    PVC
  • Bend Radius
    10X
  • Rated voltage
    600Vac / 750Vdc
  • Rated temperature
    105℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    PVC
  • Bend Radius
    10X
