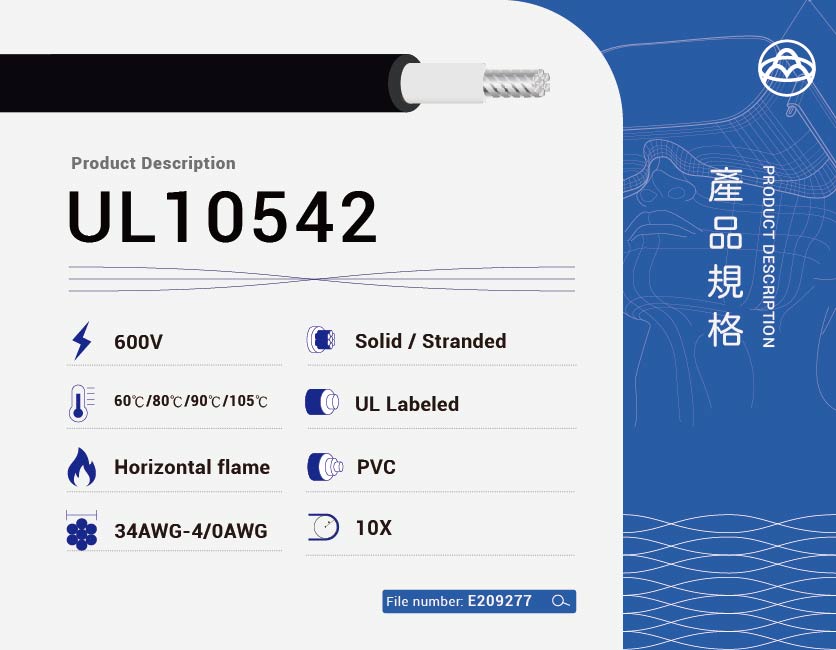

UL10542 PVC Wire – 105°C 600V Hook-Up Wire for Electronic Equipment
UL10542 PVC wire is a UL-certified hook-up wire insulated with polyvinyl chloride (PVC), designed for internal wiring of electronic and electrical equipment. Rated for 105°C and 600V, it is ideal for use in control panels, lighting fixtures, and industrial enclosures.
Constructed with a stranded tinned copper conductor and heat-resistant PVC insulation, UL10542 offers excellent flexibility, corrosion resistance, and insulation integrity. It is widely used in applications requiring stable performance in moderate-to-high temperature conditions.
Key Features
- UL-certified PVC insulated hook-up wire
- Temperature rating: 105°C
- Voltage rating: 600V
- Conductor: Stranded tinned copper for solderability and corrosion resistance
- Compliant with UL requirements for internal wiring in appliances and electronics
Electrical Specifications – AWG vs. 20°C Resistance
| AWG | 20°C Resistance (Ω/km) |
|---|---|
| 30 | 381 |
| 28 | 239 |
| 26 | 150 |
| 24 | 94.2 |
| 22 | 59.4 |
| 20 | 36.7 |
| 18 | 23.2 |
Application Areas of UL10542 PVC Wire
- Internal wiring of control panels, devices, and appliances
- Signal and power transmission in industrial equipment
- Terminal blocks, lighting systems, and instrumentation
- Medium-temperature zones requiring stable PVC insulation
