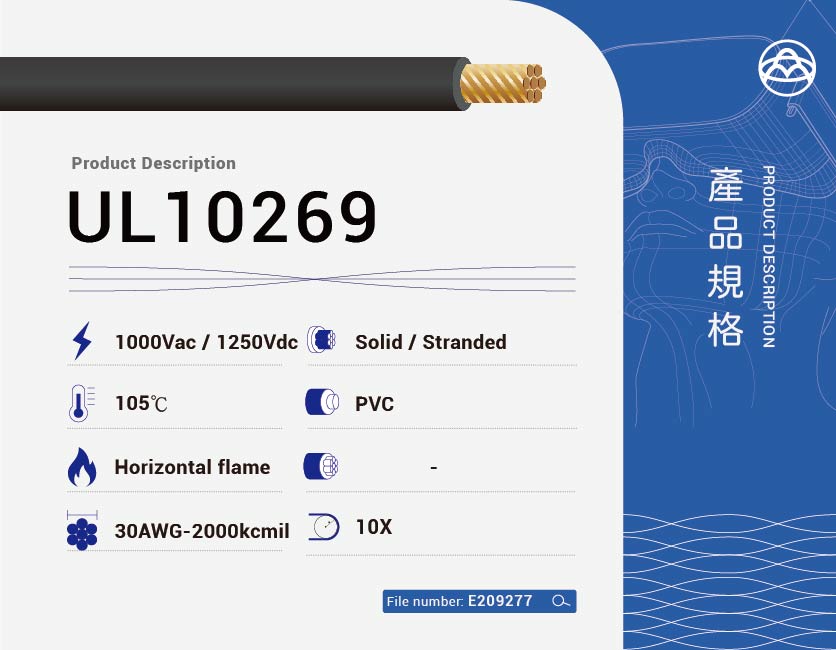

UL10269 PVC Wire – High-Voltage 1000V 105°C Internal Hook-Up Cable
UL10269 PVC wire is a UL-recognized hook-up wire featuring flame-retardant PVC insulation. Rated for 80°C, 90°C, or 105°C and up to 1000VAC / 1250VDC, it is designed for internal wiring of electrical and electronic equipment under high-voltage and moderate thermal conditions.
UL10269 is constructed with stranded tinned copper conductors and offers horizontal flame performance with optional oil resistance at 60°C or 80°C. It meets demanding standards for panel wiring, power distribution modules, and control cabinets.
Key Features of UL10269 High-Voltage PVC Hook-Up Wire
- UL-recognized flame-retardant PVC insulation
- Temperature ratings: 80°C, 90°C, or 105°C
- Voltage ratings: 1000VAC / 1250VDC
- Optional: Oil resistance at 60°C or 80°C
- Stranded tinned copper conductor for durability and solderability
Electrical Specifications – AWG vs. 20°C Resistance
| AWG | 20°C Resistance (Ω/km) |
|---|---|
| 8 | 2.23 |
| 6 | 1.40 |
| 4 | 0.87 |
| 2 | 0.55 |
| 1 | 0.44 |
Application Areas
- Internal wiring for power equipment and industrial enclosures
- High-voltage DC modules and transformers
- Control panels and electrical cabinets
- Oil-resistant installations in automation systems
