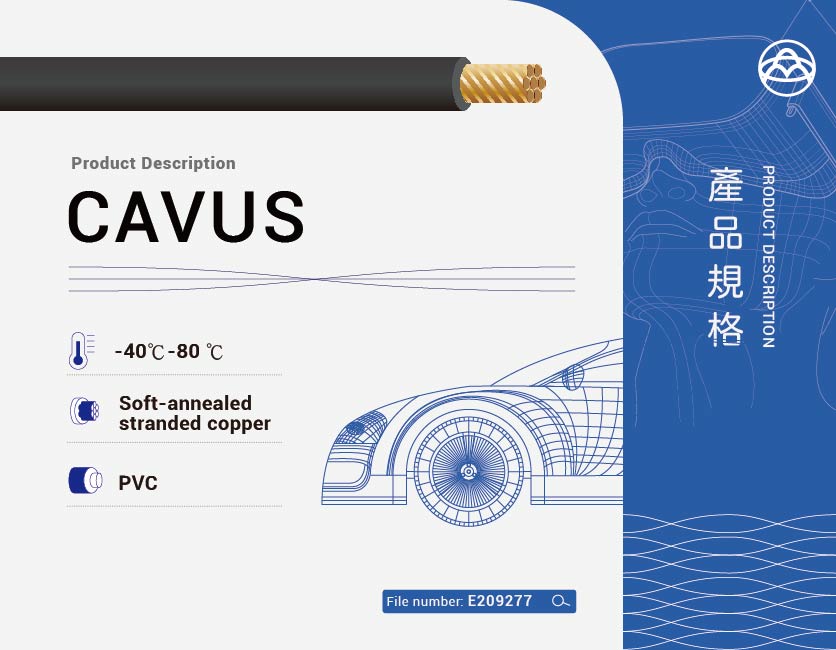

CAVUS Automotive Wire – Ultra Thin-Wall PVC 80°C Wire with Compressed Conductor for Lightweight Vehicle Harnesses
CAVUS wire is a high-efficiency, ultra thin-wall automotive cable insulated with PVC and built with a compressed stranded conductor. Designed according to JASO D611, it offers superior space-saving properties and mechanical reliability, making it ideal for lightweight automotive harnesses.
Rated for 80°C and 60V, CAVUS wire achieves even thinner insulation than AVSS while maintaining dependable electrical performance. It’s well-suited for compact wiring environments where reducing weight and bulk is critical.
Key Features
-
Conductor: Compressed stranded bare copper (per JIS C 3102)
-
Insulation: Ultra thin-wall lead-free PVC
-
Temperature Rating: -40°C to 80°C
-
Voltage Rating: 60V (nominal automotive systems)
-
Wall Thickness: Thinner than AVSS for higher harnessing density
-
Color Coding: Available in solid and striped colors for easy circuit ID
-
RoHS Compliant: Lead-free and environmentally responsible
Common Applications
-
Internal wiring in dashboards, mirrors, power seats, and door panels
-
Compact automotive ECUs and electronic module harnesses
-
Lightweight vehicle and motorcycle wiring where space is limited
-
Ultra-dense routing in vehicle body control systems
-
Green vehicle designs requiring reduced material usage
Conductor Resistance Reference (20°C, Ω/km)
| Cross Section (mm²) | Resistance (Ω/km) |
|---|---|
| 0.30 | ~65.5 |
| 0.50 | ~39.0 |
| 0.85 | ~23.0 |
| 1.25 | ~15.0 |
| 2.00 | ~9.5 |
