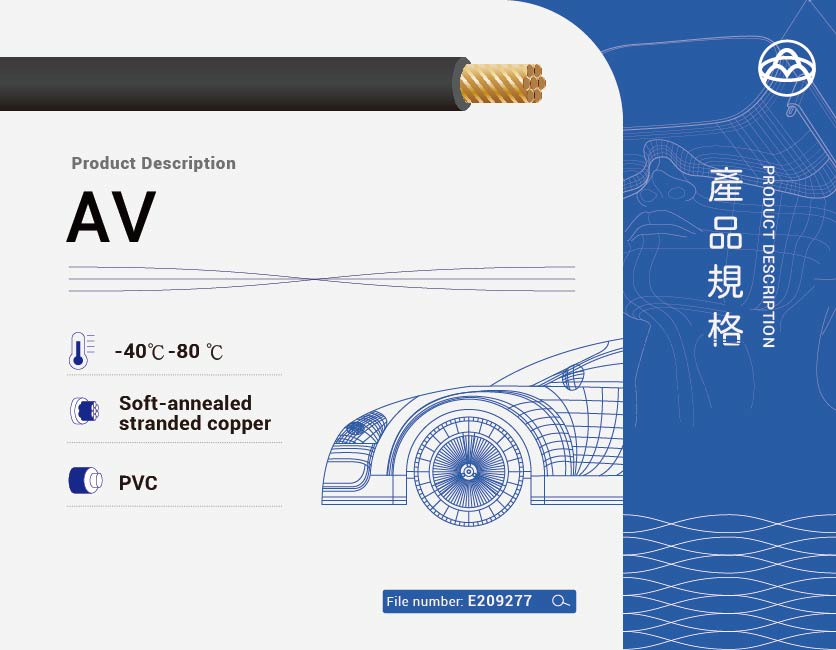

AV Automotive Wire – Standard PVC 80°C Wire for Vehicle Power & Signal Applications
AV automotive wire is a JIS-standard single-core wire widely used in Japanese and Asian vehicles for low-voltage power and signal transmission. Featuring standard-wall PVC insulation, AV wire provides dependable performance in general-purpose automotive applications such as lighting, switches, sensors, and dashboard electronics.
Manufactured in accordance with JIS C 3406 and JASO D611, AV wire is rated for 80°C continuous operation and 60V, making it a cost-effective solution for automotive harnesses not exposed to high temperatures.
Key Features
-
Conductor: Stranded bare copper (standard automotive grade)
-
Insulation: Standard PVC (polyvinyl chloride)
-
Temperature Rating: -40°C to 80°C
-
Voltage Rating: 60V (automotive low-voltage systems)
-
Construction: Thick-wall PVC for durability and easy crimping
-
Color Coding: Wide range of solid and stripe color options
-
RoHS Compliant: Lead-free and halogen-free variants available
Common Applications
-
Wiring in interior lighting, switches, horn, and signal systems
-
Tail lamps, dashboard instruments, and power mirrors
-
Entry-level car models and motorcycles
-
Cost-sensitive OEM or aftermarket automotive wiring
-
Electrical circuits not exposed to engine or high-heat zones
Conductor Resistance Reference (20°C, Ω/km)
| Cross Section (mm²) | Resistance (Ω/km) |
|---|---|
| 0.50 | ~39.0 |
| 0.85 | ~23.0 |
| 1.25 | ~15.0 |
| 2.00 | ~9.5 |
| 3.00 | ~6.3 |
