USB 4.0 Type-C Dongle Cable | High-Speed Embedded Cable for SSD & Docking

Overview
The USB 4.0 Type-C Dongle Cable Series from 3A PLUS is a high-speed, ultra-thin solution designed for embedded systems, SSDs, and docking modules. Supporting up to 40 Gbps (USB4 / Thunderbolt 3), this cable series is ideal for compact electronic devices requiring fast data transmission, power delivery, and Alt Mode functionality.

Key Features

• Interface: USB 4.0 / USB 3.2 Gen2 / Gen3 / Thunderbolt 3

• Speed: Up to 40 Gbps (USB4 / TB3), Gen2 10G / Gen2x2 20G

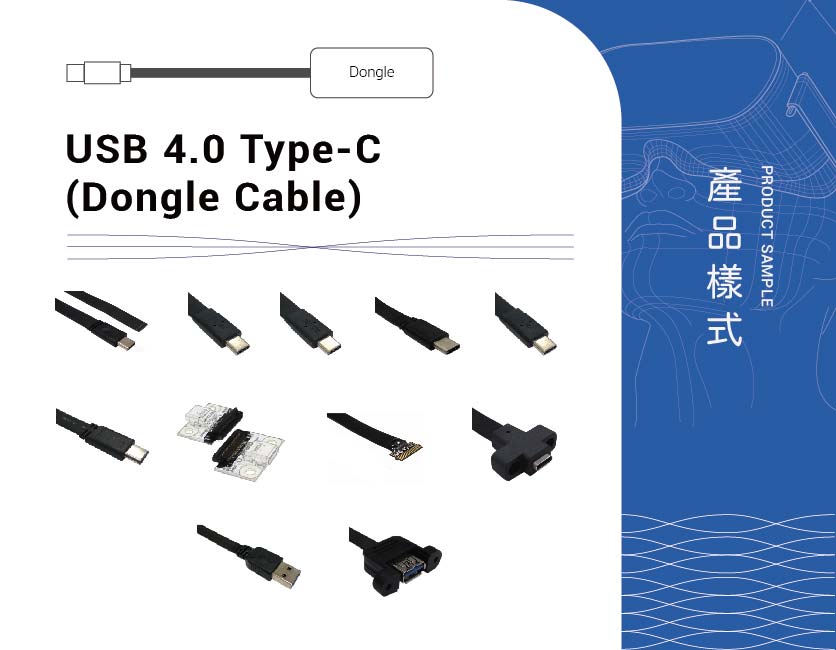

• Connector Types: USB Type-C (C24M / C24F), ZIF / open-end

• Cable Thickness: 1.25 mm ultra-thin design

• Length Options: 5 cm to 100 cm (customizable)

• Power Delivery: Supports 20V / 5A (optional e-Mark)

• Certifications: Multi-national patents, halogen-free

• Features: 21P / 13P pitch, Alt Mode (DP1.4, HDMI), Redriver / Retimer versions available

Applications

• Embedded dongles and tablet modules

• NVMe SSD interfaces and external USB devices

• USB-C docking stations and converters

• High-speed signal routing in compact systems

• Devices requiring DP Alt Mode or USB-C power

Recommended Internal Products

• USB 4.0 Type-C Flat Cable (40Gbps / Thunderbolt 3)

• USB 3.2 Gen2 Internal Cable (Key A  to C24M)

• USB 3.2 Gen2 Internal Cable (Key B to C24M)

  ---

  Looking for reliable high-speed USB Type-C dongle cables for your embedded systems or docking modules?
  Contact 3A PLUS today for OEM customization, technical support, and product samples.

  👉 Get in Touch with Us ｜ View Full USB Cable Series
