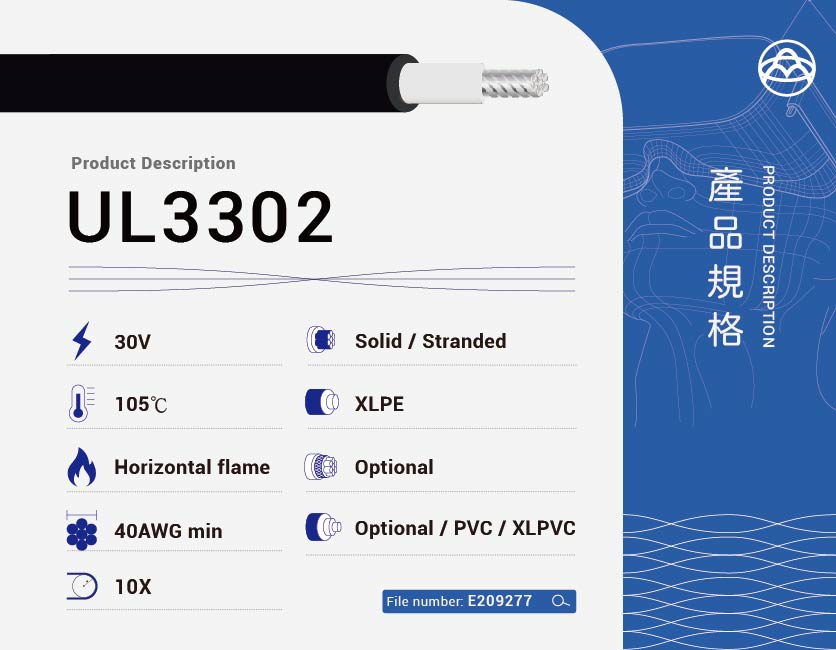

UL3302 XLPE Insulated Wire – 105°C / 30V Hook-Up Wire for Internal Wiring Applications
UL3302 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 30V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame performance are critical.
Key Features
-
Conductor: Solid or stranded bare or tinned copper, available in sizes from 40 AWG and larger
-
Insulation: Extruded XLPE or foamed XLPE with a minimum thickness of 4 mils (0.10 mm) and a maximum thickness of 100 mils (2.54 mm)
-
Temperature Rating: Up to 105°C
-
Voltage Rating: 30V
-
Flame Resistance: Passes UL Horizontal Flame Test
-
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3302
-
Usage: Designed for internal wiring of Class 2 circuits in electronic equipment
Common Applications
-
Internal wiring in electronic devices and instrumentation
-
Applications requiring moderate heat resistance and low-voltage performance
-
Internal connections in compact or precision electronic systems
