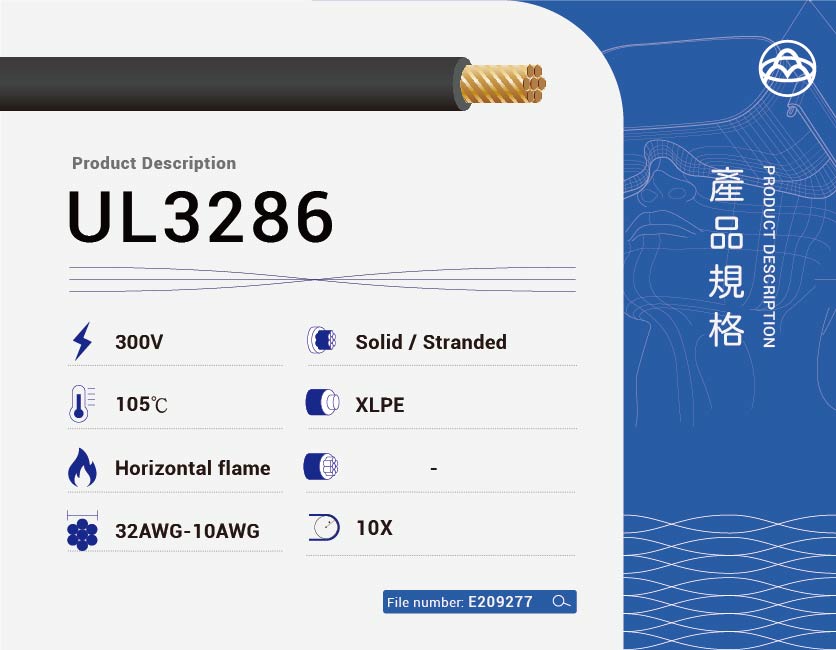

UL3286 XLPE Insulated Wire – 105°C / 300V Halogen-Free Hook-Up Wire for Internal Wiring Applications
UL3286 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 300V, this wire is designed for internal wiring in electronic and electrical equipment where moderate heat resistance, voltage stability, and flame performance are critical.
Key Features
-
Conductor: Solid or stranded bare or tinned copper, available in sizes from 32 AWG to 10 AWG
-
Insulation: Extruded XLPE with a nominal thickness of 0.41 mm (16 mils)
-
Temperature Rating: Up to 105°C
-
Voltage Rating: 300V
-
Flame Resistance: Passes UL Horizontal Flame Test (UL 1581 VW-1)
-
Environmental Compliance: RoHS and REACH compliant, halogen-free
-
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3286
-
Usage: Designed for internal wiring in electronic and electrical equipment
Common Applications
-
Internal wiring in electronic devices, medical equipment, and instrumentation
-
Applications requiring moderate heat resistance and high-voltage performance
-
Internal connections in industrial control panels, motors, and transformers
-
Suitable for lighting systems, heating equipment, and household appliances
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 32 | 381 |
| 30 | 239 |
| 28 | 150 |
| 26 | 94.2 |
| 24 | 59.4 |
| 22 | 36.7 |
| 20 | 23.2 |
| 18 | 14.6 |
| 16 | 8.96 |
| 14 | 5.64 |
| 12 | 3.55 |
| 10 | 2.23 |
