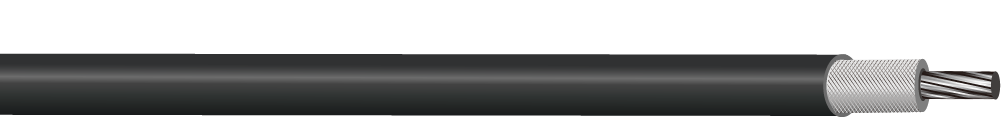

UL30034 – 30kV DC XLPE-Insulated High-Voltage Wire for Industrial and Power Applications
UL30034 is a UL-certified high-voltage wire designed for applications requiring high insulation integrity and reliable voltage stability. Rated for 30kV DC and 105°C, this wire features stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and complies with the Cable Flame Test under UL 758 AWM standards. It is suitable for applications requiring flexibility and flame resistance.
Key Features
-
Conductor: Stranded bare or tinned copper (24 AWG to 10 AWG)
-
Insulation: XLPE (Cross-Linked Polyethylene)
-
Jacket: Optional XLPVC (Cross-Linked Polyvinyl Chloride)
-
Temperature Rating: 105°C
-
Voltage Rating: 30kV DC
-
Flame Resistance: Passes UL VW-1, FT2 tests
-
Standard: UL 758 AWM Style 30034
-
Compliance: RoHS, REACH
-
Application: High-voltage internal wiring of electronic equipment
Common Applications
-
High-voltage power transfer in industrial equipment
-
Wiring in electric vehicles (EVs) and battery energy storage systems (ESS)
-
Internal routing for industrial control cabinets and server-grade UPS
-
Power connections for renewable energy and grid-level ESS
-
Environments exposed to oil, heat, vibration, or electrical noise
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 24 | 94.2 |
| 22 | 59.4 |
| 20 | 36.7 |
| 18 | 23.2 |
| 16 | 14.6 |
| 14 | 9.38 |
| 12 | 5.89 |
| 10 | 3.69 |
