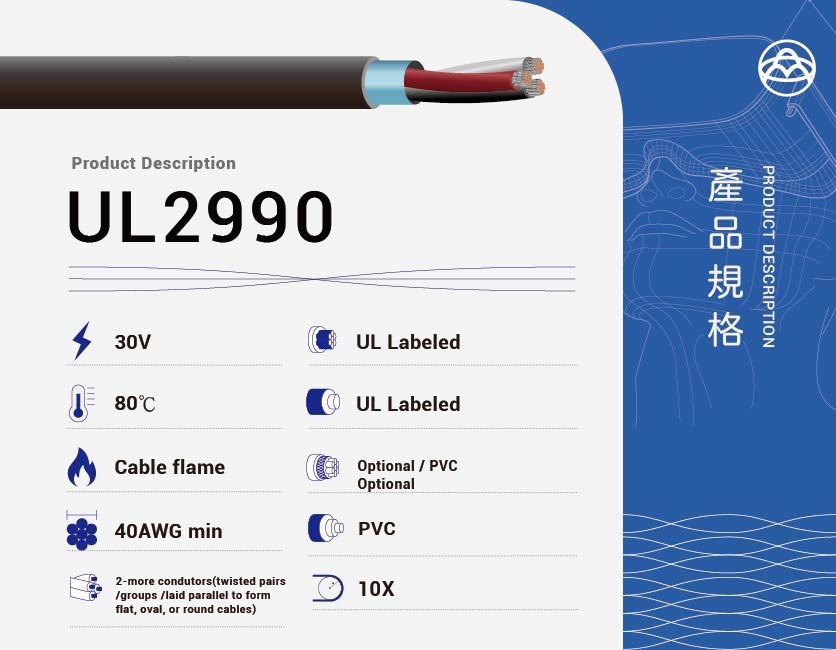

UL2990 PVC Cable – 80°C / 30V Cable for Internal Wiring of Electronic Equipment
UL2990 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30 Vac , this cable consists of two or more PVC-insulated solid or stranded copper conductors laid parallel, with an optional outer jacket. It complies with the Cable Flame Test per UL 758 standards, making it suitable for low-voltage internal wiring applications.
Key Features
-
Conductor: Solid or stranded copper (two or more conductors)
-
Insulation: Extruded PVC
-
Jacket: Optional
-
Rated Temperature: 80°C
-
Rated Voltage: 30 Vac
-
Flame Resistance: Passes Cable Flame Test
-
Standards: UL 758 AWM Style 2990
-
Use Case: Internal wiring of electronic equipment
Common Applications
-
Low-voltage internal wiring of electronic devices
-
Signal or power wiring in compact systems
-
Bundled multi-core internal cable for equipment or instruments
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 26 | 13.70 |
| 24 | 8.62 |
| 22 | 5.44 |
| 20 | 3.42 |
