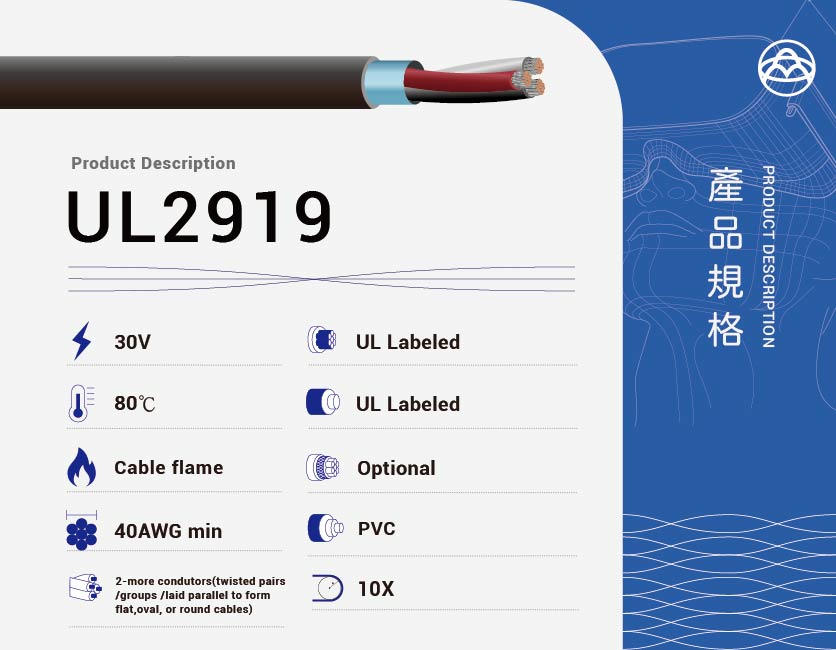

UL2919 Coaxial Cable – 80°C / 30V for Audio-Video and Signal Transmission
UL2919 is a UL-certified coaxial cable designed for internal wiring in electronic equipment requiring high-frequency signal transmission. Rated for 80°C and 30V, this cable features one or more coaxial constructions consisting of a center conductor, insulation, metallic shield, and optional jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it a dependable solution for video, RF, and multimedia signal applications.
Key Features
-
Structure: Single or multiple coaxial constructions
-
Center Conductor: Solid or stranded copper
-
Insulation: PVC or equivalent thermoplastic
-
Shielding: Metallic shield (braid, foil, or both)
-
Jacket: Optional PVC or equivalent
-
Temperature Rating: 80°C
-
Voltage Rating: 30 Vac
-
Flame Test: Cable Flame
-
Standards: UL 758 AWM Style 2919
-
Use Case: Internal signal wiring in electronic devices
Common Applications
-
Audio-video transmission cables
-
RF signal and CCTV system wiring
-
Internal cabling for multimedia equipment, monitors, and broadcast devices
-
Devices requiring shielded signal integrity in a compact layout
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 28 | 22.00 |
| 26 | 13.70 |
| 24 | 8.62 |
| 22 | 5.44 |
