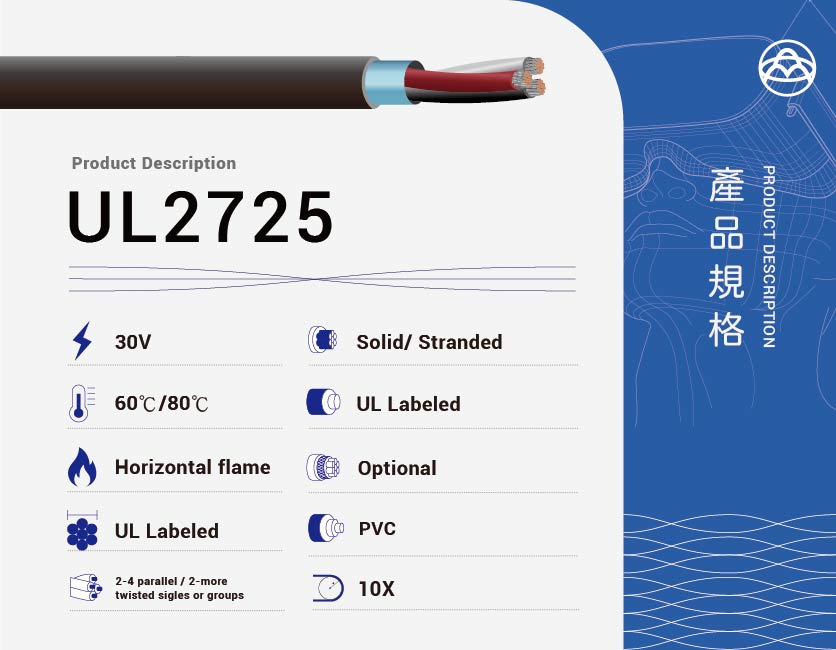

UL2725 PVC Shielded Cable – 80°C / 30V Multi-Conductor Wire for Internal Electronic Wiring

UL2725 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30V, this cable features stranded tinned copper conductors, PVC insulation, and an optional shield and jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for low-voltage applications requiring flexibility and flame resistance.

 Key Features

• Conductor: Stranded tinned copper

• Insulation: PVC

• Shield: Optional (e.g., aluminum foil, braid)

• Jacket: PVC

• Temperature Rating: 80°C

• Voltage Rating: 30V

• Flame Resistance: Passes Cable Flame Test

• Standard: UL 758 AWM Style 2725

• Application: Internal wiring of electronic equipment

Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• USB and data cables

• Audio and video equipment wiring

Conductor Resistance Reference (20°C, Ω/km)
