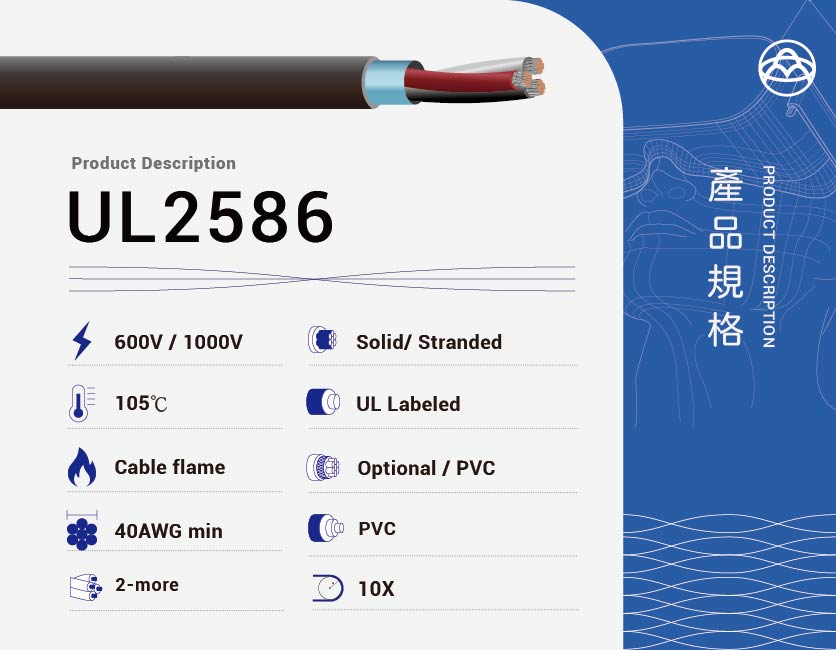

UL2586 PVC Insulated Cable – 105°C / 1000V Multi-Conductor Wire for Internal Electronic Applications
UL2586 is a UL-certified multi-conductor cable designed for the internal wiring of electronic and electrical equipment. Rated for 105°C and 1000V, this cable features solid or stranded copper conductors, extruded PVC insulation, and an optional outer jacket. It meets the Cable Flame Test under UL 758 AWM standards, providing high-voltage durability and flame resistance in demanding industrial and electronic systems.
Key Features
-
Conductor: Solid or stranded copper
-
Insulation: Extruded PVC
-
Jacket: Optional
-
Temperature Rating: 105°C
-
Voltage Rating: 1000V
-
Flame Resistance: Passes Cable Flame Test
-
Standard: UL 758 AWM Style 2586
-
Use Case: Internal wiring of electronic and electrical equipment
Common Applications
-
High-voltage internal wiring in industrial electronics
-
Control panels and automation equipment
-
Power and signal wiring in instruments or devices
-
Applications requiring 1000V rated flame-retardant cabling
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 26 | 13.70 |
| 24 | 8.62 |
| 22 | 5.44 |
| 20 | 3.42 |
| 18 | 2.15 |
