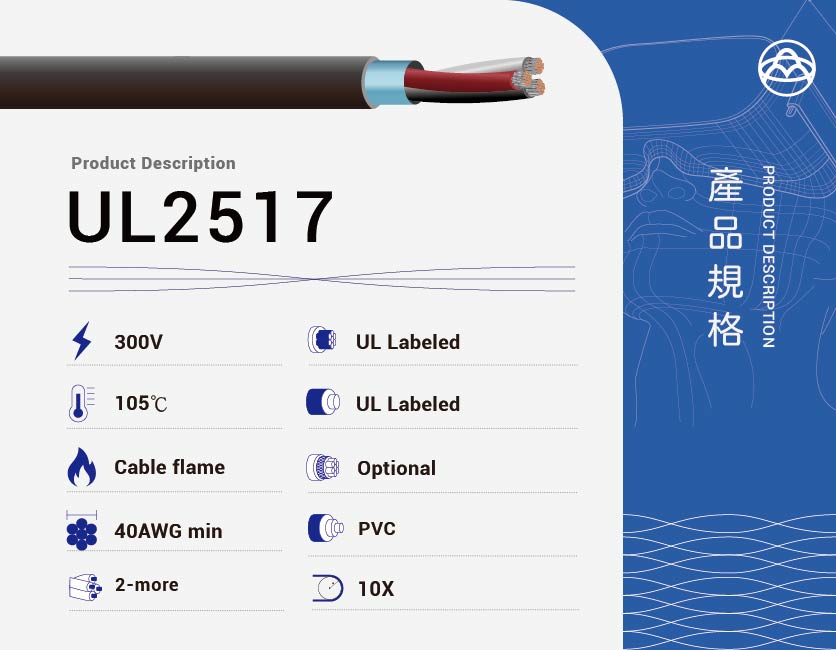

UL2517 PVC Insulated Cable – 105°C / 300V Multi-Conductor Wire for Internal Electronic Applications
UL2517 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 105°C and 300V, this cable features stranded tinned or bare copper conductors, PVC insulation, and an optional shield and jacket. It complies with the VW-1 flame test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
-
Conductor: Stranded tinned or bare copper
-
Insulation: PVC
-
Shield: Optional (e.g., aluminum foil, braid)
-
Jacket: PVC
-
Temperature Rating: 105°C
-
Voltage Rating: 300V
-
Flame Resistance: Passes VW-1 Flame Test
-
Standard: UL 758 AWM Style 2517
-
Application: Internal wiring of electronic equipment
Common Applications
-
Internal wiring in electronic devices
-
Signal transmission in computers and peripherals
-
Control wiring in industrial equipment
-
Audio and video equipment wiring
Conductor Resistance Reference (20°C, Ω/km)
| AWG Size | Max Resistance (Ω/km) |
|---|---|
| 16 AWG | 13.7 |
| 18 AWG | 21.8 |
| 20 AWG | 34.6 |
| 22 AWG | 55.0 |
| 24 AWG | 87.5 |
