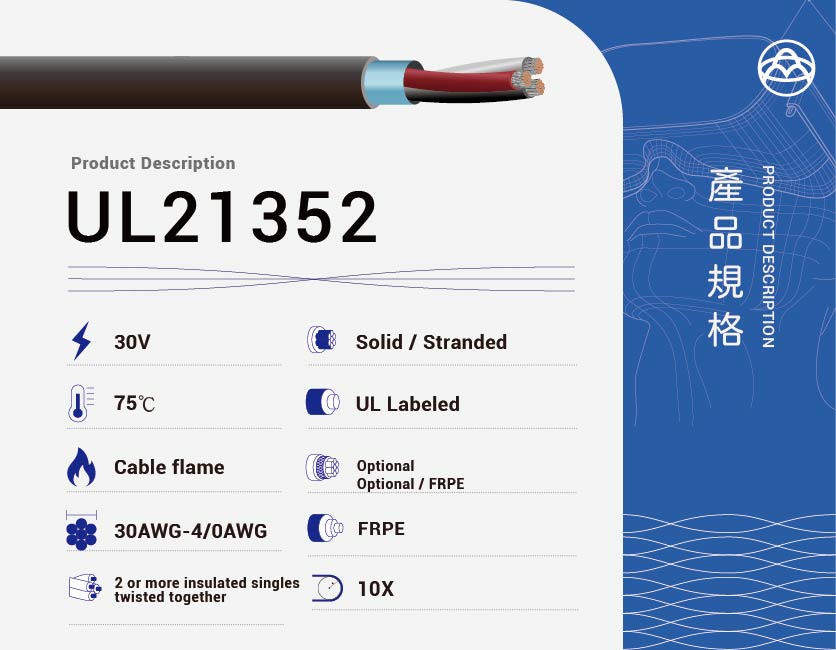

UL21352 FRPE Insulated Cable – 75°C / 30V Multi-Conductor Wire for Internal Electronic Applications

UL21352 is a UL-certified multi-conductor cable designed for internal wiring of electronic equipment. Rated for 75°C and 30V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the VW-1 vertical flame test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

Key Features

• Conductor: Solid or stranded copper, 30 AWG to 4/0 AWG

• Insulation: Labeled or complies with manufacturer's AWM Procedure

• Assembly: Two or more insulated singles twisted together

• Shield: Optional

• Jacket: Extruded FRPE

• Temperature Rating: 75°C

• Voltage Rating: 30V

• Flame Resistance: Passes VW-1 vertical flame test

• Standard: UL 758 AWM Style 21352

• Application: Internal wiring of electronic equipment

 Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• Control wiring in industrial equipment

• Applications requiring flexible and flame-retardant wiring solutions

Conductor Resistance Reference (20°C, Ω/km)
