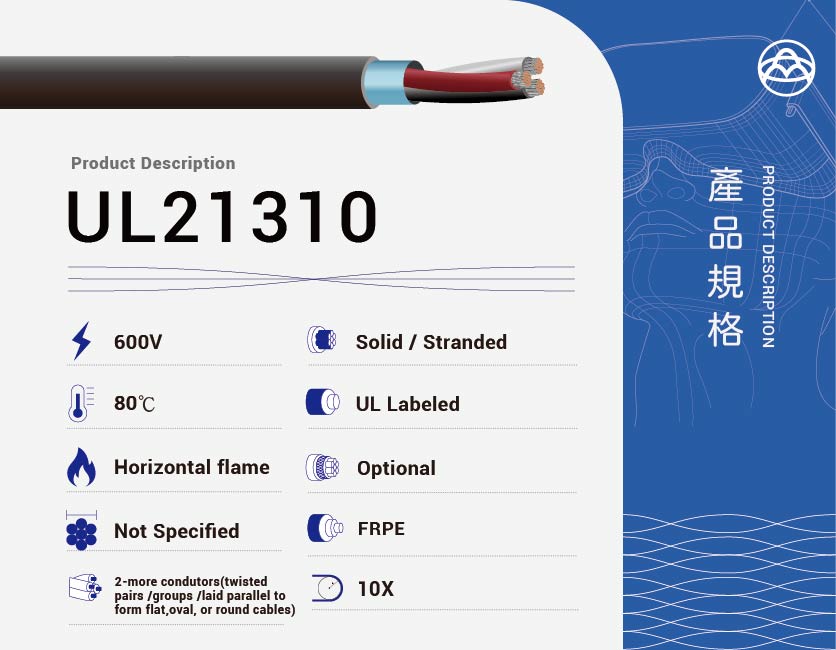

UL21310 FRPE Insulated Cable – 80°C / 600V Multi-Conductor Wire for Internal Electronic Applications

UL21310 is a UL-certified multi-conductor cable designed for internal wiring of electronic equipment. Rated for 80°C and 600V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

Key Features

• Conductor: Solid or stranded copper, 40 AWG minimum

• Insulation: Labeled or complies with manufacturer's AWM Procedure

• Assembly: Two or more twisted singles or groups of twisted singles twisted together, or groups may be laid parallel to form flat, oval, or round cables

• Shield: Optional

• Jacket: Extruded FRPE, 16 mils minimum average thickness, 12 mils minimum at any point

• Temperature Rating: 80°C

• Voltage Rating: 600V

• Flame Resistance: Passes Horizontal Flame Test

• Standard: UL 758 AWM Style 21310

• Application: Internal wiring of electronic equipment

 Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• Control wiring in industrial equipment

• Applications requiring flexible and flame-retardant wiring solutions

Conductor Resistance Reference (20°C, Ω/km)
