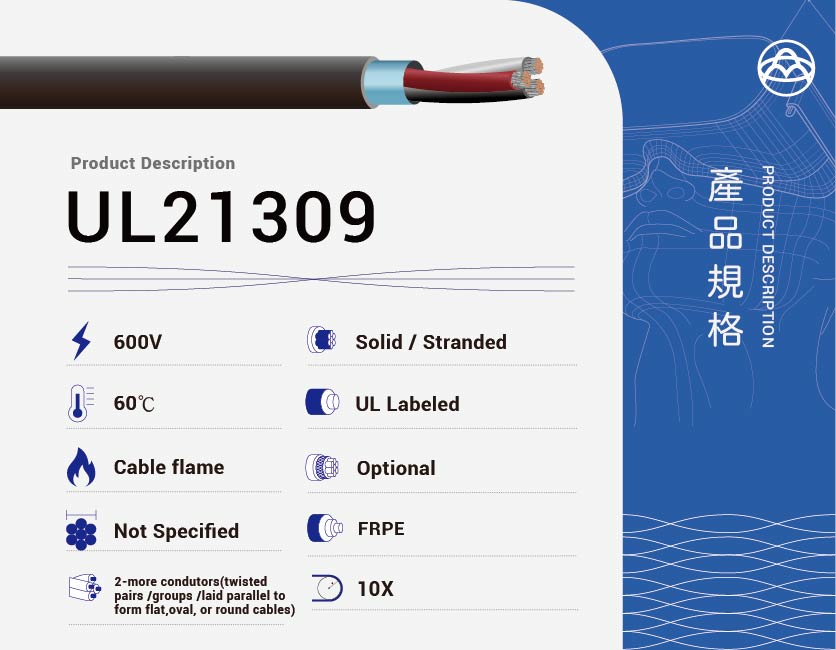

UL21309 FRPE Insulated Cable – 60°C / 600V Multi-Conductor Wire for Internal and External Electronic Applications
UL21309 is a UL-certified multi-conductor cable designed for internal wiring and external interconnection of electronic equipment. Rated for 60°C and 600V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the VW-1 vertical flame test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
-
Conductor: Solid or stranded copper
-
Insulation: Labeled or complies with manufacturer's AWM Procedure
-
Assembly: Two or more insulated singles or groups of insulated singles cabled together to form a flat, oval, or round assembly
-
Shield: Optional
-
Jacket: Extruded FRPE
-
Temperature Rating: 60°C
-
Voltage Rating: 600V
-
Flame Resistance: Passes VW-1 vertical flame test
-
Standard: UL 758 AWM Style 21309
-
Application: Internal wiring and external interconnection of electronic equipment
Common Applications
-
Internal wiring in electronic devices
-
Signal transmission in computers and peripherals
-
Control wiring in industrial equipment
-
External interconnection of electronic equipment
Conductor Resistance Reference (20°C, Ω/km)
| AWG Size | Max Resistance (Ω/km) |
|---|---|
| 16 AWG | 13.7 |
| 18 AWG | 21.8 |
| 20 AWG | 34.6 |
| 22 AWG | 55.0 |
| 24 AWG | 87.5 |
| 26 AWG | 138 |
| 28 AWG | 220 |
| 30 AWG | 346 |
