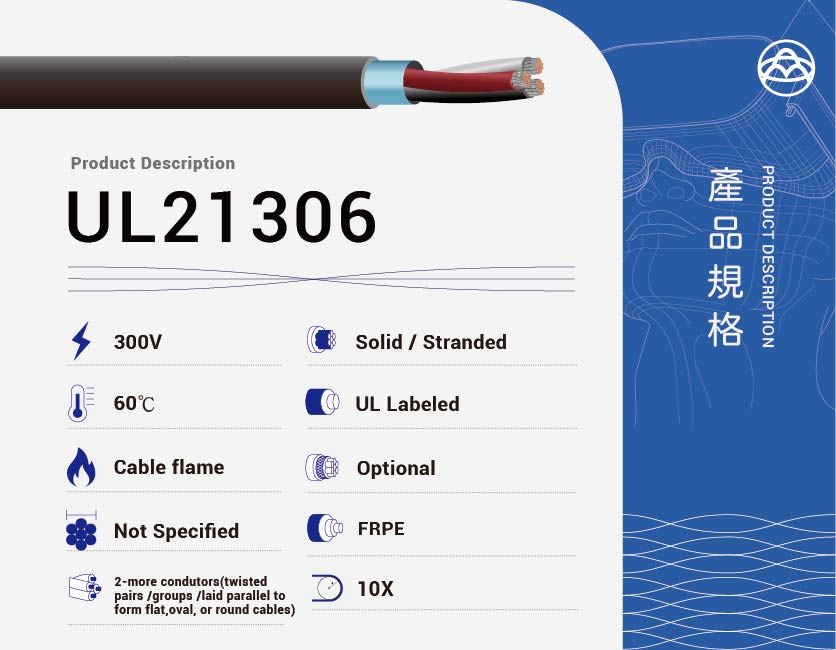

UL21306 FRPE Insulated Cable – 60°C / 300V Multi-Conductor Wire for Internal and External Electronic Applications

UL21306 is a UL-certified multi-conductor cable designed for both internal wiring and external interconnection of electronic equipment. Rated for 60°C and 300V, this cable features stranded or solid tinned copper conductors, PE or FRPE insulation, and an extruded FRPE jacket. It complies with the UL VW-1 vertical flame test, making it suitable for applications requiring flexibility and flame resistance.

Key Features

• Conductor: Stranded or solid tinned copper

• Insulation: PE or FRPE (Flame Retardant Polyethylene)

• Assembly: Multiple cores cabled under aluminum mylar shield

• Shield: Optional tinned or bare copper wire braid shield up to 95% coverage

• Jacket: Extruded FRPE

• Temperature Rating: 60°C

• Voltage Rating: 300V

• Flame Resistance: Passes UL VW-1 vertical flame test

• Standards: UL 758, UL1581, CSA C22.2 No. 210.2

• Application: Internal wiring and external interconnection of electronic equipment

Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• Control wiring in industrial equipment

• External interconnection of electronic equipment

Conductor Resistance Reference (20°C, Ω/km)
