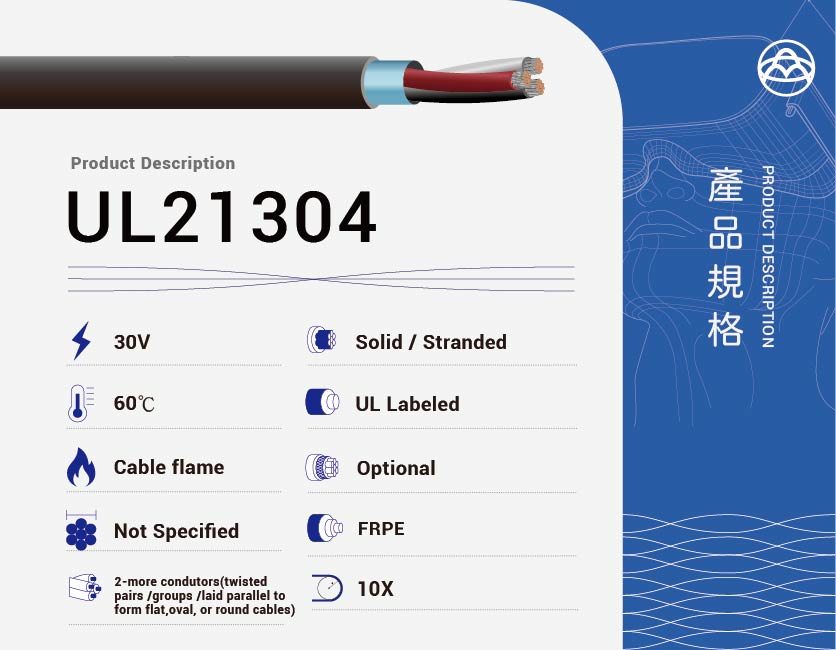

UL21304 FRPE Insulated Cable – 60°C / 30V Multi-Conductor Wire for Internal and External Electronic Applications

UL21304 is a UL-certified multi-conductor cable designed for internal wiring and external interconnection of electronic equipment. Rated for 60°C and 30V, this cable features stranded or solid tinned copper conductors, flame-retardant and halogen-free FRPE insulation, and an extruded FRPE jacket. It complies with the UL VW-1 vertical flame test, making it suitable for applications requiring flexibility and flame resistance.

Key Features

• Conductor: Stranded or solid tinned copper

• Insulation: Flame-retardant and halogen-free FRPE

• Assembly: Two or more conductors twisted or laid parallel to form flat, oval, or round cables

• Shield: Optional aluminum mylar and/or tinned copper wire braid shield

• Jacket: Extruded FRPE

• Temperature Rating: 60°C

• Voltage Rating: 30V

• Flame Resistance: Passes UL VW-1 vertical flame test

• Standard: UL 758 AWM Style 21304

• Application: Internal wiring and external interconnection of electronic equipment

 Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• Control wiring in industrial equipment

• External interconnection of electronic equipment

Conductor Resistance Reference (20°C, Ω/km)
