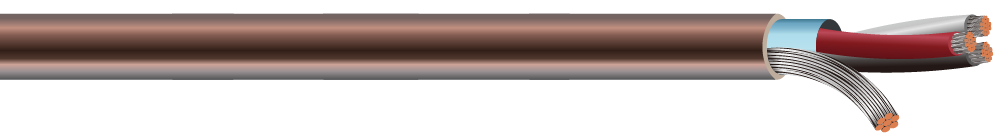

UL21282 FRPE Insulated Cable – 80°C / 150V Multi-Conductor Wire for Internal Electronic Applications

UL21282 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 150V, this cable features solid or stranded tinned or bare copper conductors, flame-retardant FRPE insulation, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

 Key Features

• Conductor: Solid or stranded tinned or bare copper (minimum 40 AWG)

• Insulation: Complies with the manufacturer's AWM procedure

• Assembly: Two or more conductors twisted or laid parallel to form flat, oval, or round cables

• Shield: Optional aluminum mylar and/or tinned copper wire braid shield

• Jacket: Extruded FRPE

• Temperature Rating: 80°C

• Voltage Rating: 150V

• Flame Resistance: Passes Horizontal Flame Test

• Standard: UL 758 AWM Style 21282

• Application: Internal wiring of electronic equipment

Common Applications

• Internal wiring in electronic devices

• Signal transmission in computers and peripherals

• Control wiring in industrial equipment

• Applications requiring flexible and flame-retardant wiring solutions

Conductor Resistance Reference (20°C, Ω/km)
