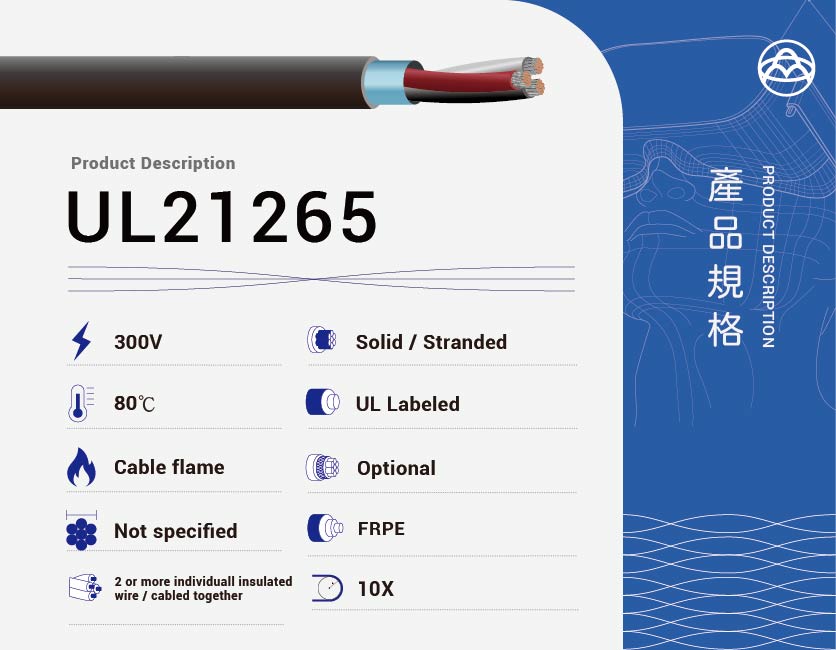

UL21265 FRPE Insulated Cable – 80°C / 300V Multi-Conductor Wire for Internal and External Electronic Applications

UL21265 is a UL-certified multi-conductor cable designed for both internal and external wiring of electronic equipment. Rated for 80°C and 300V, this cable features solid or stranded copper conductors, flame-retardant FRPE insulation, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

 Key Features

• Conductor: Solid or stranded round copper (30 AWG – 4/0 AWG)

• Insulation: Complies with the manufacturer's AWM procedure

• Assembly: Two or more insulated singles twisted together; optional fillers, shields, braids, and/or barrier layers

• Jacket: Extruded FRPE

• Temperature Rating: 80°C

• Voltage Rating: 300V

• Flame Resistance: Passes Cable Flame Test

• Standard: UL 758 AWM Style 21265

• Application: Internal and external wiring of electronic equipment

 Common Applications

• Internal wiring in electronic devices

• External connections in industrial control systems

• Circuits requiring flame resistance and insulation durability

• High-reliability internal and external cabling for sensitive systems

Conductor Resistance Reference (20°C, Ω/km)
