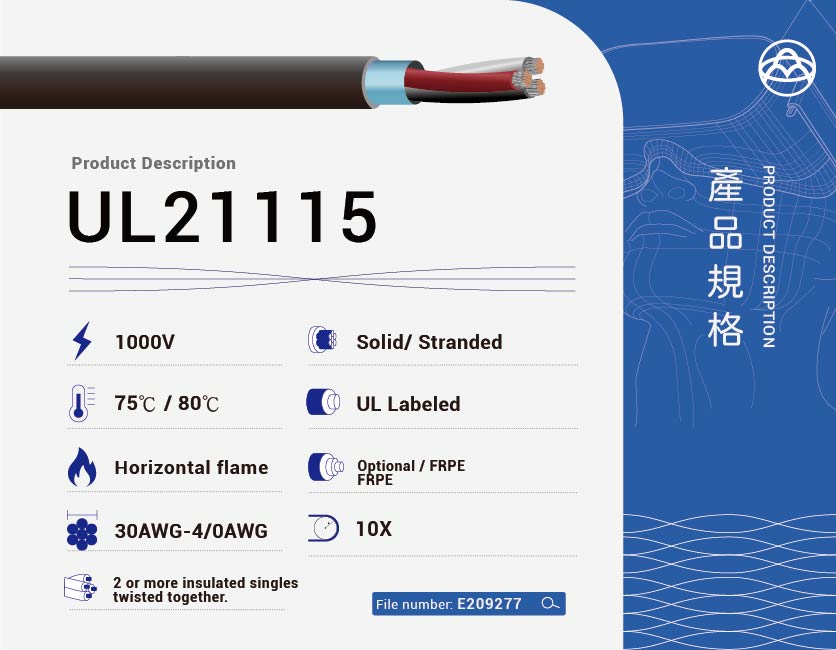

UL21115 – 1000V / 80°C Multi-Conductor Cable with FRPE Jacket for Internal Wiring Applications

UL21115 is a UL-certified multi-conductor cable designed for internal wiring of electronic and electrical equipment. Rated for 1000V and 80°C, this cable features solid or stranded bare or tinned copper conductors, AWM-compliant insulation, and a flame-retardant FRPE (Flame Retardant Polyethylene) jacket. It complies with UL 758 AWM Style 21115 and passes horizontal flame testing, making it suitable for high-voltage internal wiring with flame resistance and durability.

Key Features

• Conductor: Solid or stranded copper (30 AWG to 4/0 AWG), bare or tinned

• Insulation: AWM-rated insulation material

• Assembly: Two or more insulated conductors, may include fillers, shields, or barriers

• Jacket: Extruded FRPE for mechanical strength and flame protection

• Temperature Rating: 80°C

• Voltage Rating: 1000V

• Flame Test: Passes UL Horizontal Flame Test

• Standard: UL 758 AWM Style 21115

• Application: Internal wiring of electronic and industrial equipment

 Common Applications

• Internal power and signal wiring in electronics

• High-voltage control panel interconnections

• Industrial machinery and factory automation systems

• Multi-core high-reliability internal cabling

Conductor Resistance Reference (20°C, Ω/km)

🔗 Related Products

• UL21288 – 1000V / 80°C Multi-Conductor Cable

🌐 External Technical Reference

UL iQ™ Style Page – UL21115

Need help selecting the right cable?

Our technical team is ready to assist you in choosing the best UL21115 cable for your system.
👉 Contact Us | Request a Quote
