UL20327 TPE Insulated Cable – 105°C / 300V Multi-Conductor Wire for Internal and External Electronic Applications

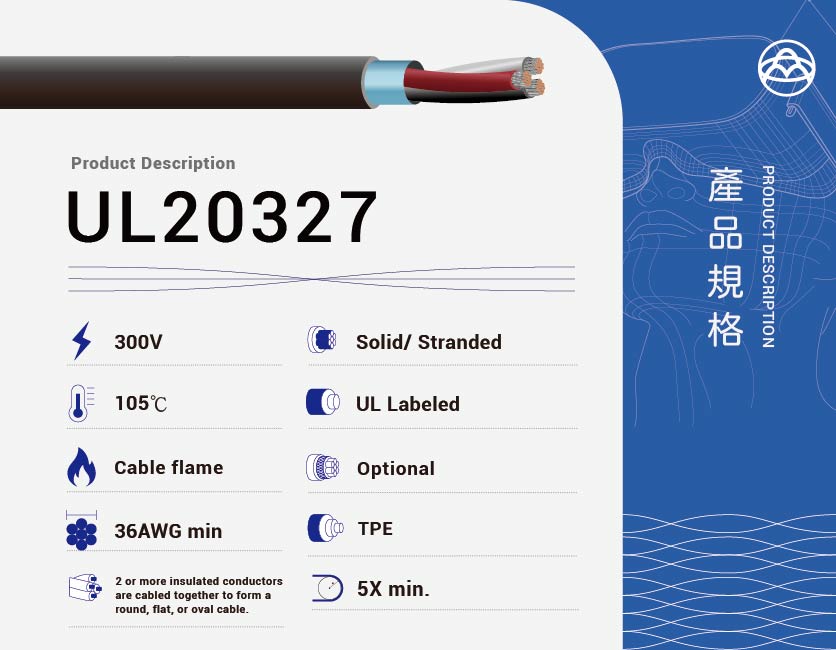

UL20327 is a UL-certified multi-conductor cable designed for both internal wiring and external interconnection of electronic equipment. Rated for 105°C and 300V, this cable features stranded tinned copper conductors, TPE insulation, and a TPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
-
Conductor: Solid or stranded tinned copper, 36 AWG and above
-
Insulation: TPE
-
Jacket: TPE
-
Temperature Rating: 105°C
-
Voltage Rating: 300V
-
Flame Resistance: Passes Cable Flame Test
-
Standard: UL 758 AWM Style 20327
-
Application: Internal wiring and external interconnection of electronic equipment
Common Applications
-
Internal wiring in electronic devices
-
Signal transmission in computers and peripherals
-
Control wiring in industrial equipment
-
Audio and video equipment wiring
Conductor Resistance Reference (20°C, Ω/km)
| AWG Size | Max Resistance (Ω/km) |
|---|---|
| 16 AWG | 13.7 |
| 18 AWG | 21.8 |
| 20 AWG | 34.6 |
| 22 AWG | 55.0 |
| 24 AWG | 87.5 |
| 26 AWG | 138 |
| 28 AWG | 220 |
| 30 AWG | 346 |
