UL1354 Coaxial Cable – 80°C / 30V Shielded Wire for Internal Signal and Data Transmission
UL1354 is a UL-certified coaxial cable designed for internal wiring of electronic and signal-transmitting equipment. Rated for 80°C and 30V, it features flame-retardant insulation with optional shielding, providing excellent signal integrity and EMI protection in low-voltage applications.
This cable is ideal for applications that demand reliable coaxial transmission, compact routing, and effective electromagnetic shielding, commonly used in audio/video devices, RF signal lines, and control equipment.

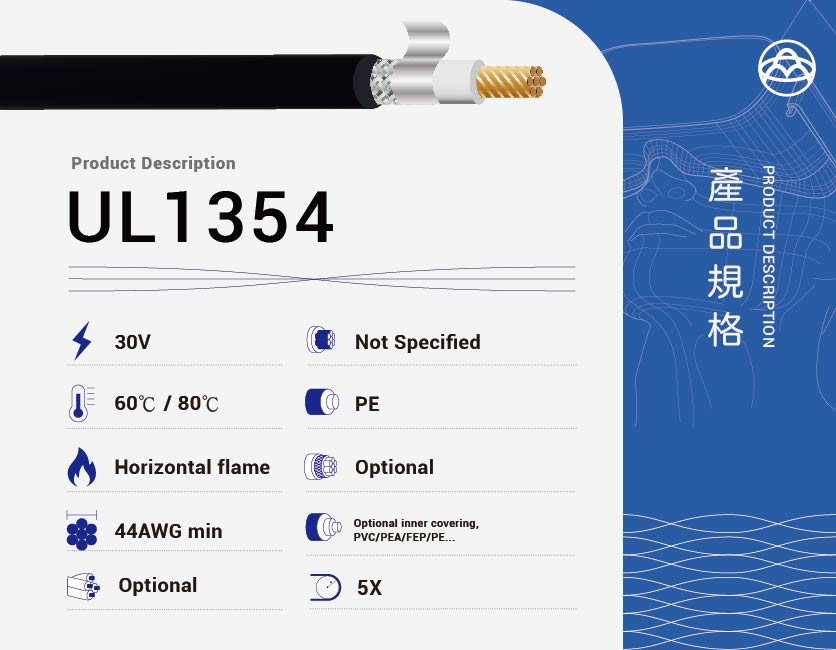

Key Features
-
Conductor: Solid or stranded bare/tinned copper, 44 AWG and larger
-
Insulation: Extruded solid or cellular PE, FRPE, PP, PFA, FEP, or combinations thereof
-
Shielding: Optional aluminum mylar tape, tinned copper braid, or spiral wrap
-
Jacket: PVC or other UL-approved materials
-
Impedance: Available in 50Ω or 75Ω configurations
-
Temperature Rating: 60°C or 80°C
-
Voltage Rating: 30V
-
Flame Resistance: Passes UL Horizontal Flame Test
-
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 1354
-
RoHS / REACH Compliant
Common Applications
-
Internal wiring in audio/video systems
-
Coaxial RF cable for low-frequency applications
-
Data transmission in industrial control systems
-
Shielded connections in measurement equipment
-
EMI-sensitive wiring in consumer electronics
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
|---|---|
| 34 | 93.25 |
| 32 | 55.00 |
| 30 | 34.60 |
| 28 | 21.80 |
| 26 | 13.70 |
