UL10272

UL10272

Description

UL10272 PVC Insulated Wire – 80°C / 150V Hook-Up Wire for Internal Electronic Wiring

UL10272 is a UL-certified single-conductor wire insulated with extruded PVC. Rated for 80°C and 150V, this style is specifically designed for internal wiring of electronic devices and for further processing in PVC-jacketed cables. With its compact insulation profile and optional shielding, UL10272 is ideal for low-voltage, space-sensitive electronic applications.


Key Features

  • Conductor: Solid or stranded, bare or tinned copper (available from 36 AWG to 20 AWG)

  • Insulation: Extruded PVC, with a minimum average thickness of 6 mils and 5 mils minimum at any point

  • Temperature Rating: Up to 80°C

  • Voltage Rating: 150V AC

  • Flame Test Compliance: Horizontal flame test

  • Shielding: Optional

  • Covering (Jacket): Optional extruded PVC jacket (5 mils minimum, 80 mils maximum)

  • Standards: UL 758 (Appliance Wiring Material)

  • Application: For use in PVC-jacketed cables and internal wiring of electronic equipment


Common Applications

  • Internal wiring for electronic control boards and sensors

  • Signal transmission in data acquisition systems

  • Integration into custom multi-core cable assemblies

  • Low-voltage and low-temperature internal electronic devices


🔗 Related Products


🌐 External Technical Reference


 Need help selecting the right wire?

Our technical support team is ready to help you choose the most suitable UL10272 configuration for your design.

👉 Contact Us | Request a Quote

  • Wire 001

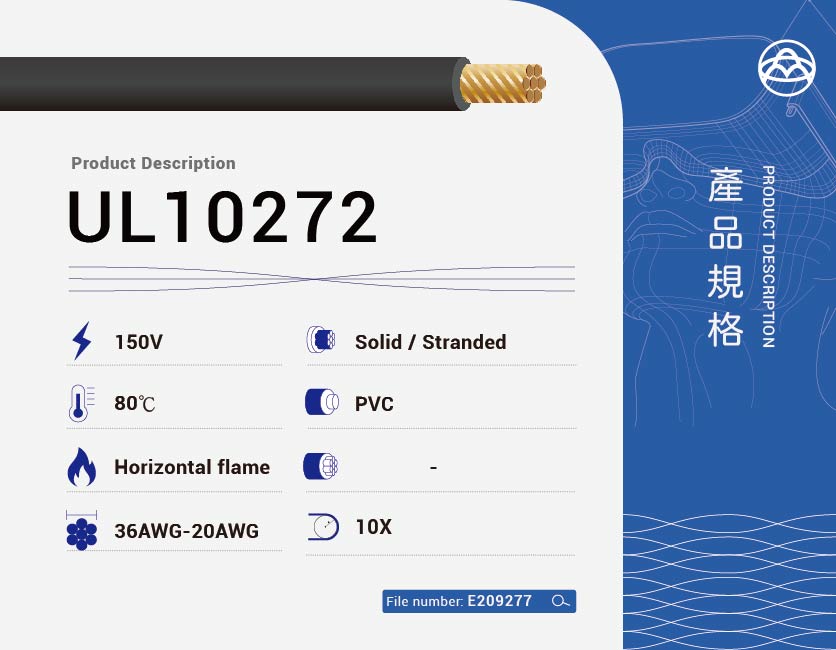

  • 輪播圖 10272-50
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • Wire 001
  • 輪播圖 10272-50
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • Rated voltage
    150V
  • Rated temperature
    80℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    PVC
  • Bend Radius
    10X
  • Rated voltage
    150V
  • Rated temperature
    80℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    PVC
  • Bend Radius
    10X
