NVMe SSD Cable | U.2 / M.2 / PCIe X4 High-Speed Gen.3 & Gen.4 Extensions
Overview
3A PLUS offers ultra-thin and flexible NVMe SSD cables designed for U.2 (SFF-8639), M.2 (2260/22110), and PCIe X4 interfaces. Supporting PCIe Gen.3 (8Gbps) and upgradeable to Gen.4 (16Gbps), this series enables seamless SSD extension, conversion, and signal routing—ideal for server, data center, and AI computing builds.
Key Specifications
-
Transmission Rate: PCIe Gen.3 (8Gbps), upgradeable to Gen.4 (16Gbps)
-
Supported Interfaces: U.2 (SFF-8639), M.2 2260, PCIe X4 (64M)
-
Cable Thickness: 1.25 mm ultra-thin halogen-free flat cable
-
Max Cable Length: Up to 1 meter
-
Bendability: 180° bendable, impedance-stable
-
Power Support: Supports 3.3V / 12V
-
Chip Requirement: No repeater / EQ chip required
-
Origin & Patent: Made in Taiwan, patented internationally
Applications
-
Extension and conversion for NVMe 1.3 / 1.4 SSDs
-
High-speed interface for U.2, M.2, and PCIe X4 storage
-
Compact or high-density server builds
-
Ideal for data centers, HPC, and AI applications
-
Compatible with SATA/SAS hybrid structures

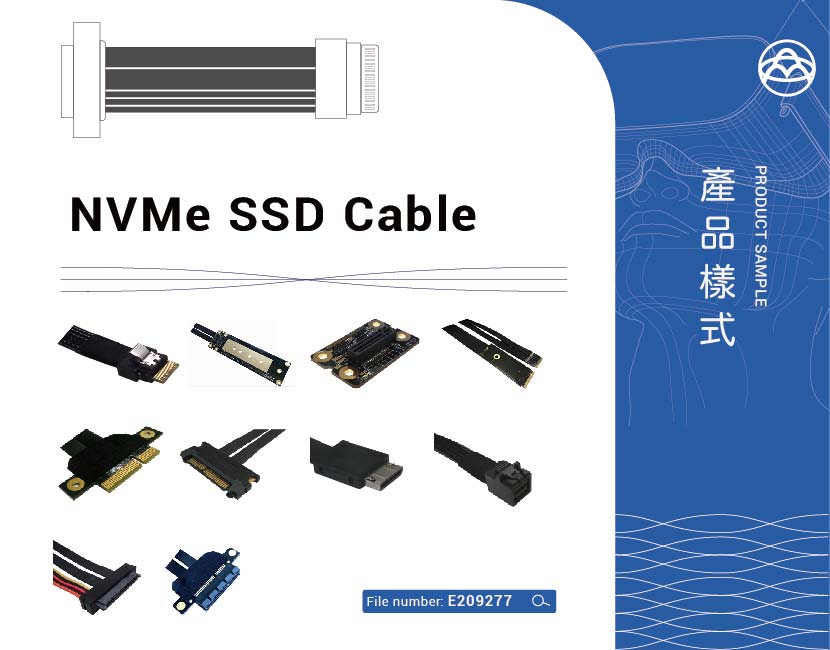

Popular Models
| Model No. | Interface / Notes |
|---|---|
| 5G75D14 Series | U.2 68M to M.2 75M 2260 Molded |
| 5G68D14 Series | PCIe 64M to M.2 2260 |
| 5G75A03 Series | M.2 75M to M.2 75M Compact Extension |
| 5G68D15 Series | U.2 68M to PCIe 64M |
| 5G64D15 Series | PCIe 64M to PCIe 64M |
| 5G68A07 | U.2 68M x2 (host extension) |
| 5G68A04 | U.2 68F x2 (dual output) |
| 5R68A01 | 8643 36F to U.2 68F Adapter |
| 5R68D02 | 8643 36F + SATA 7F to U.2 68F Hybrid SAS Adapter |
