Description

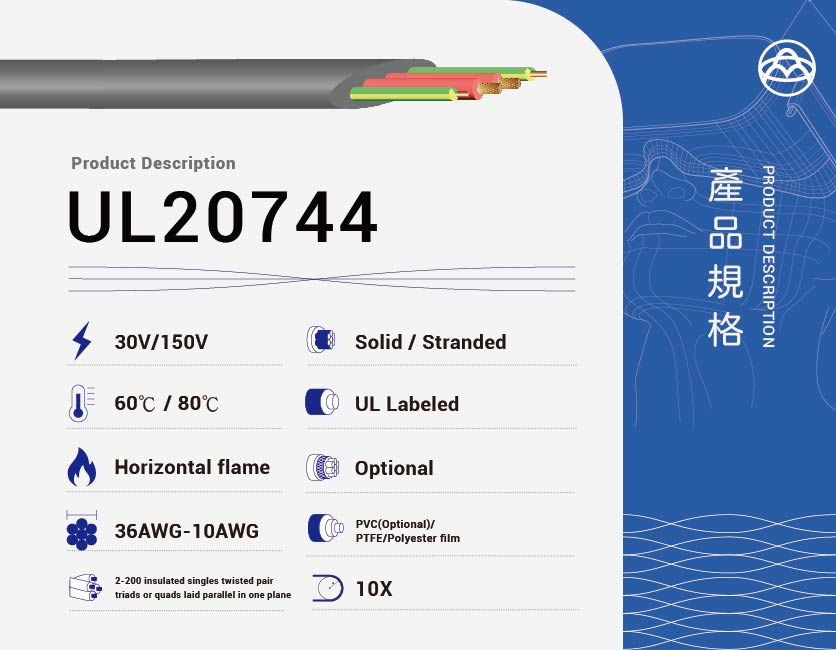

UL20744 High-Speed Data Cable – Flat or Round Cable for Signal Transmission

UL20744 cable is a UL-certified high-speed signal and data cable designed for modern electronic systems requiring high-frequency, high-density transmission. Commonly used in servers, storage systems, industrial automation, and advanced electronics, it offers a variety of conductor configurations (2 to 200 cores), insulation types, and flexible structures such as flat ribbon or round bundled formats.

With rated voltages of 30V or 150V and temperature ratings up to 80°C, UL20744 cables are built to handle tight routing, mechanical movement, and stable signal integrity in complex, space-constrained installations. Available shielding options provide enhanced EMI resistance, and all constructions meet UL758 AWM requirements for flame and electrical safety.


 Key Features

  • Conductor Sizes: 36 to 10 AWG

  • Voltage Ratings: 30V / 150V AC

  • Temperature Rating: 60°C or 80°C

  • Flame Rating: Horizontal flame test compliant

  • Conductor Count: 2 to 200 cores

  • Cable Structure: Flat ribbon, twisted pair, triplet, or quad bundles

  • Insulation Options: PVC or AWM-compliant polymers

  • Shielding: Optional aluminum foil or copper braid shielding

  • Jacket Materials: PVC, PTFE, or polyester film (5–80 mils thick)

  • UL Standard: UL20744 listed per UL758 AWM


Typical Applications

  • Servers & Data Centers – High-speed interconnects for data transfer

  • Storage Equipment – Internal signal/control cabling for SSD/HDD arrays

  • Industrial Automation – Machine-to-controller signal or power wiring

  • Consumer Electronics – Audio/video system internal wiring

  • Medical Devices – Signal transmission in diagnostic and monitoring equipment

  • Flat Cable Assemblies – For robotic arms, printers, or rack-mount designs


🌐 External Reference


We offer custom configurations, including flat or round UL20744 cables with various shielding and insulation options.

  • 輪播圖 20744
  • multi-core Cable 03
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • 輪播圖 20744
  • multi-core Cable 03
  • 20250227 輪播圖(環境友善)
  • 20250227 輪播圖(專業認證)
  • Rated voltage
    150V
  • Rated temperature
    60℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    UL Labeled
  • Bend Radius
    10X
  • Rated voltage
    150V
  • Rated temperature
    60℃
  • Fire Performances
    Horizontal flame
  • Conductor
    Solid / Stranded
  • Insulation
    UL Labeled
  • Bend Radius
    10X
